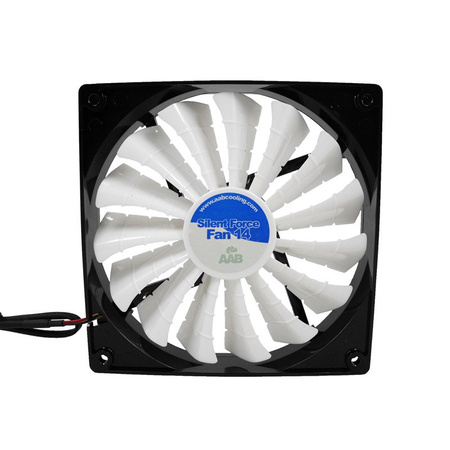

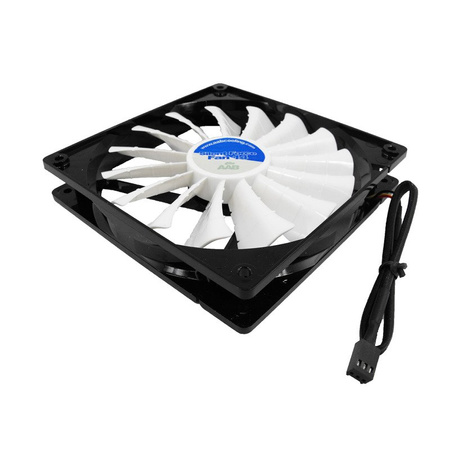

AABCOOLING Silent Force Fan 14

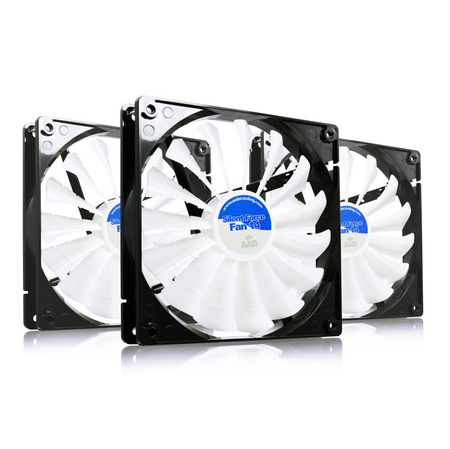

Set of 3 – AABCOOLING Silent Force Fan 14

The set includes 3 pcs of AABCOOLING Silent Force Fan 14. The description below refers to a single item.

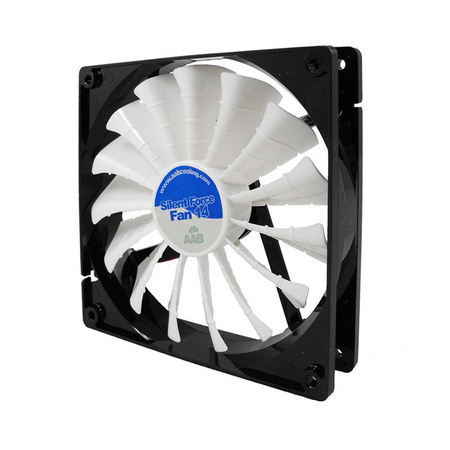

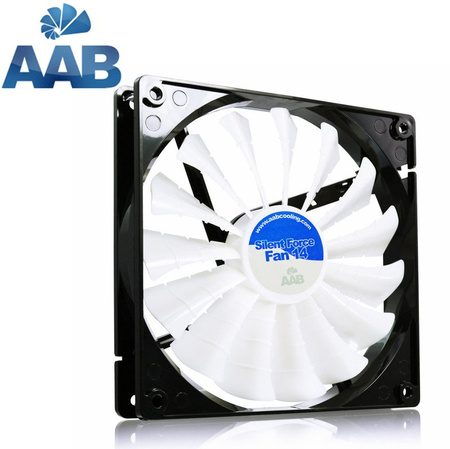

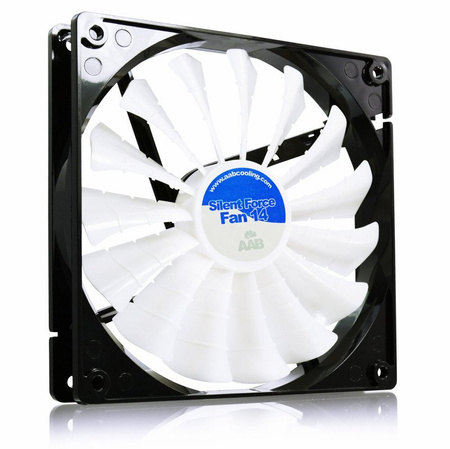

Quiet 140 mm fan with FDB bearing

AABCOOLING Silent Force Fan 14 is a 14 cm fan from the Force series featuring as many as 15 specially profiled blades. They increase performance by approx. 65% compared with standard fans while keeping noise to a minimum.

The motor with a modern IC controller ensures stable operation, and the quiet, oil-filled FDB (Fluid Dynamic Bearing) provides a service life of up to 100,000 h – much longer than sleeve bearings. The fan runs at a constant 600 rpm (±10%), delivers an airflow of 100 m³/h and generates only 8.6 dB(A).

Key features

• Dimensions 140 x 140 x 25 mm

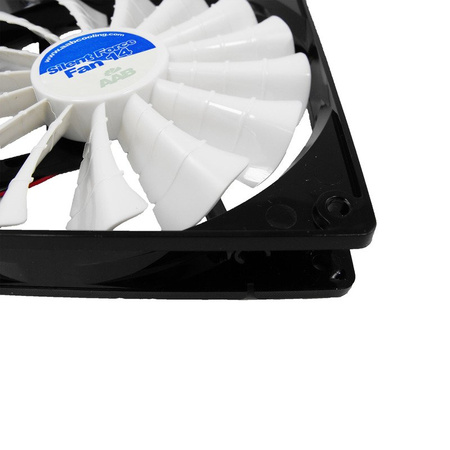

• 15 specially profiled blades
• Modern IC motor
• Quiet FDB bearing, 100,000 h service life
• Airflow 100 m³/h
• Noise level 8.6 dB(A)
• Cable in an elegant black sleeve
• Mounting screws and anti-vibration pads included

Applications

The fan improves PC cooling by exhausting warm air from the case – something the power supply fan alone often cannot do, even at high speed and with considerable noise. You can install it:

• on a 140 mm CPU cooler heatsink – as a quiet replacement for a noisy fan,
• in a PC case – at the front, rear or on the side panel,
• in an ATX computer power supply.

FDB bearing

• no friction and extended service life,
• vibrations damped by oil,
• noise generated only by the fan blades,
• protection against oil leakage,
• spiral oil distribution for even lubrication of the entire bearing,
• technology also used in hard drives.

Ordinary sleeve bearings rub against each other during operation and heat up, which significantly shortens their service life.

Installation and connection

The fan is fastened with four screws, just like standard fans in cases and power supplies, so replacing a noisy fan is quick and easy. In a power supply you can connect it in two ways:

1. To the motherboard – route the 30 cm cable into the power supply through any gap. You can then read the current fan speed in the BIOS.
2. Directly in the power supply – after disassembling the 3-pin plug: the black wire is ground (–), the red wire is power (+) and the yellow wire transmits the speed signal. Without the yellow wire connected, the BIOS cannot read the fan speed.

Note: disassembling or cutting off the plug excludes the possibility of returning the fan.

Technical specifications

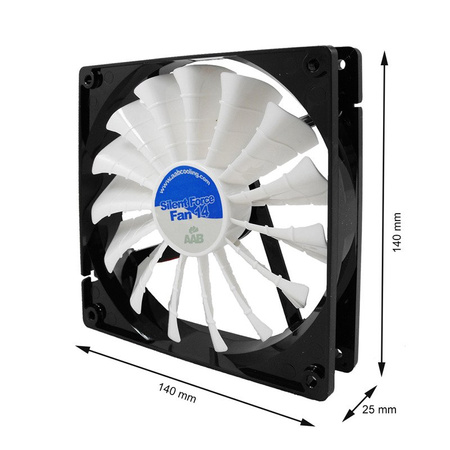

• Dimensions: 140 x 140 x 25 mm
• Mounting hole spacing: 125 x 125 mm
• Rotational speed: 600 rpm ±10%
• Airflow: 100 m³/h
• Noise level: 8.6 dB(A)
• Bearing: FDB (Fluid Dynamic Bearing)

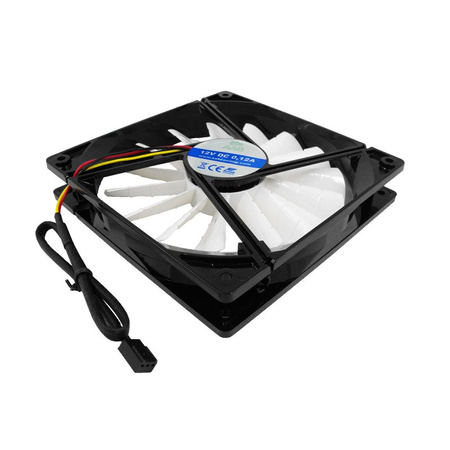

• Power supply: 4–12 V DC / 0.06–0.12 A / 0.3–1.44 W
• Connector: 3-pin
• Cable length: 30 cm
• Service life (MTBF): 100,000 h
• Weight: 119 g
• Material: plastic

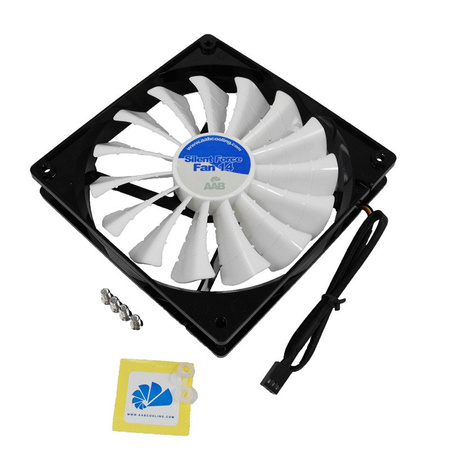

Package contents

• 1 × AABCOOLING Silent Force Fan 14
• 4 × mounting screws
• 4 × anti-vibration pads
• retail packaging
